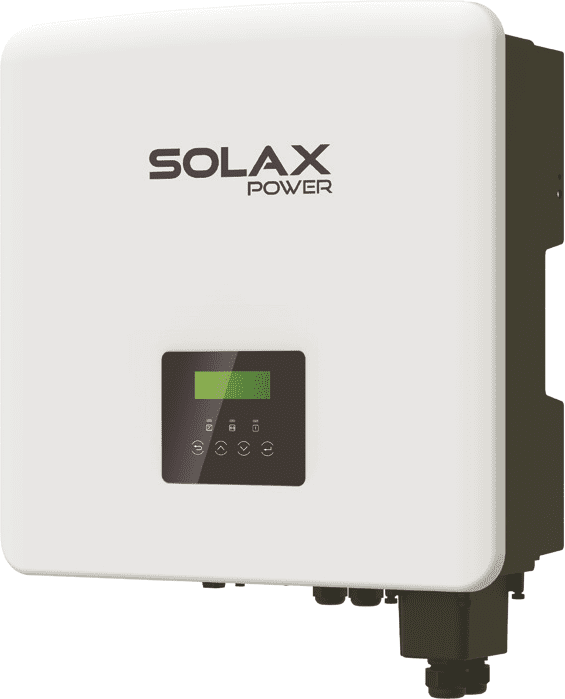

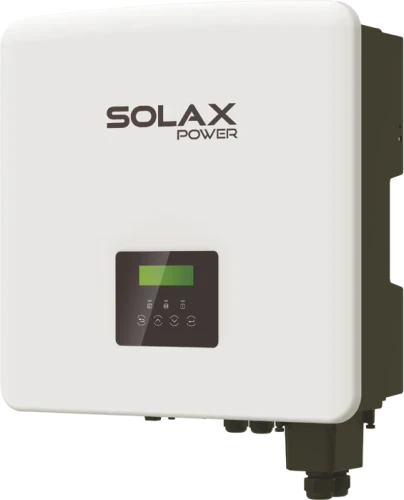

SolaX X3 RetroFit AC Coupled Battery 3ph Inverter 15.0kW

More from Solax X3-FIT AC Chargers with EPS (Three Phase)

SolaX X3 RetroFit AC Coupled Battery 3ph Inverter 15.0kW
SolaX X3 RetroFit AC Coupled Battery 3ph Inverter 15.0kW
  • Lithium-ion & lead acid battery compatible
  • Up to 110% AC overload output
  • Higher efficiency on charging and discharging, up to 98.5%
  • Store surplus energy to battery
  • Less energy loss on battery to inverter

View full description

Quick Find: 22746
Part Code: X3-FIT-15.0-W

Weight: 30.00 Kg

This product is currently awaiting on stock arrival and due in soon.

This product is currently awaiting on stock arrival and due in soon.

Backorder now to secure your delivery or sign up to be notified when this product is back in stock.


£2,188.60 ex VAT
£2,626.32 inc VAT
£2,626.32 inc VAT
£2,188.60 ex VAT
Stock Available: 3 Units

Qty

Estimated delivery: 1 working days

Day of Choice Delivery Available

Made To Order This is a made to order product and therefore cannot be returned or cancelled

Efficiency

  • Up to 110% AC overload output
  • Higher efficiency on charging and discharging, up to 98.5%

Economic

  • Store surplus energy to battery
  • Less energy loss on battery to inverter

Intelligence

  • Up to 150% EPS output for 60s
  • Switchover time <10m
  • Quick configuration with U disk
  • Lithium-ion & lead acid battery compatible
  • CT compatible, loads respond within 0.3s
  • Intelligent loads management (e.g heat pump)
  • On & off grid parallel function up to 150kW
  • 5 work modes, 2 charging periods available
  • VPP ready, ancillary service in power market
  • Three phase unbalanced output maximum 5kW output power on single phase at most

Safety

  • IP65 protection level
  • Integrated SPD

Technical specifications

AC rated power15 kW
Battery efficiency98.5/97.5
Battery typeLi-ion/Lead-acid
BrandSolax Power
Dimensions503 x 503 x 199 mm
IP ratingIP65
Max. AC output current24.1
Max. input apparent power2000
Max. output apparent power15000
Nominal voltage (AC)220/230/240

Product downloads
