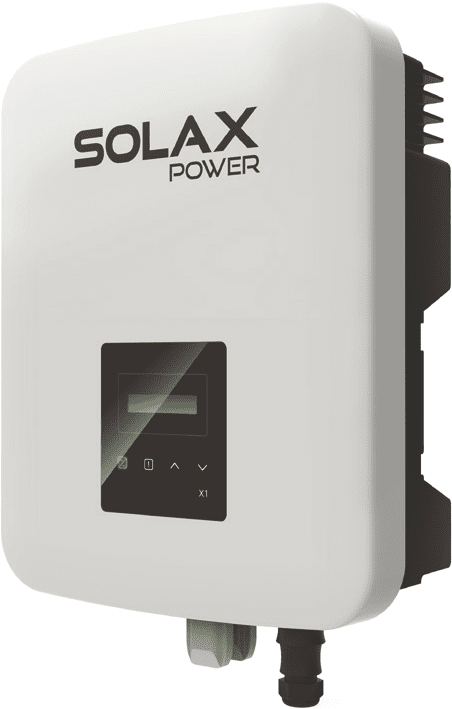

SolaX X1-6.0 Smart - Single Phase Dual MPPT Inverter

More from Solax X1 String (Single Phase)

Pallet Delivery
SolaX X1-6.0 Smart - Single Phase Dual MPPT Inverter
SolaX X1-6.0 Smart - Single Phase Dual MPPT Inverter
  • Online monitoring
  • Remote upgrade and control
  • Max. DC Input 14A per string

View full description

Quick Find: 22655
Part Code: X1-6.0 Smart

Weight: 22.00 Kg

This product is currently awaiting on stock arrival and due in soon.

This product is currently awaiting on stock arrival and due in soon.

Backorder now to secure your delivery or sign up to be notified when this product is back in stock.


£469.41 ex VAT
£563.29 inc VAT
£563.29 inc VAT
£469.41 ex VAT
Stock Available: 10 Units

Qty

Estimated delivery: 1 working days

Day of Choice Delivery Available

Made To Order This is a made to order product and therefore cannot be returned or cancelled

SolaX range of single phase inverters are unrivalled in the industry for their quality, reliability and efficiency. The SolaX single phase inverters boast a wide MPPT voltage range to allow for more energy harvesting and have a maximum input voltage of 600V, with a maximum efficiency of 97.8%. In addition, SolaX single phase inverters are IP66 rated and have no internal fan. The dual MPPT ‘Boost’ range is also compatible with the new SolaX ‘Smart Plug’ which allows for device romote control.

  • High efficiency
  • Wide voltage range
  • Smart plug load control
  • Remote monitoring
  • Number of phases: 1
  • Max efficiency 97.8%
  • IP65
  • Export limitations with meter or CT
  • 22kg
  • 341.5 x 430 x 143 mm
  • Communication RS485, (WiFi, GPRS optional)

Technical specifications

AC rated power6 kW
BrandSolax Power
Dimensions401 x 450 x 190 mm
Input voltage (DC)550
IP ratingIP65
Max DC power9 kW
Max. AC output current28.7
Max. input current (Input A/ Input B)12/24
Max. short circuit current (Input A/ Input B)14/28
MPP voltage range100-530 V
No. MPP trackers2
Nominal input voltage360
Start-up voltage100

Product downloads

Data Sheet

File Size: 1.32 MB

Warranty Terms & Conditions

File Size: 575.93 KB
