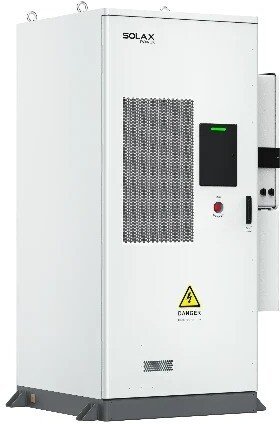

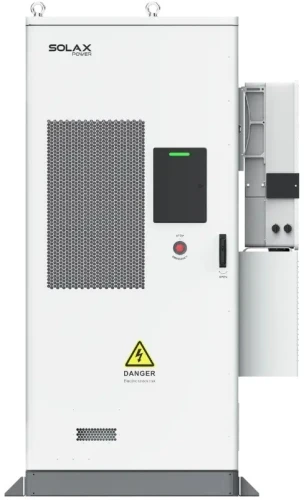

Aelio series is a highly integrated, all-in-one, C&I Hybrid energy storage cabinet with multiple application scenarios. It has outstanding advantages such as intelligent charge and discharge management, safety and reliability, and simple operation and maintenance.
First of all, Aelio cabinet uses high-density, high-safety, and high-performance LFP batteries. There are two models with capacity of 100kWh and 200kWh. When used in a single cabinet or multiple cabinets, it can charge and discharge stably according to the set working modes at different time periods, and the large-capacity battery cell of 280Ah also reduces the initial cost of the system.
Secondly, the cabinet is equipped with a self-developed Energy Management System (EMS) that can monitor the working status and abnormal alerts of each battery cell, PCS, and fire protection system in real-time. The local data storage capability allows for data analysis and verification for up to 1 year. The advanced EMS system also has leading advantages in intelligent control of different smart operation strategies, autonomous scheduling based on local electricity prices, and comprehensive management of photovoltaic, energy storage systems, EV charging and generators at power plant level. These features improve the overall system efficiency and shorten the investment return period.
In addition, the cabinet also has multiple safety protection measures. It has built-in protection functions such as overvoltage, overcurrent, and overtemperature. It is also equipped with fireproof materials and 4 levels of fire protection system, which can promptly detect and respond to potential fire risks, effectively control the spread of fires and reduce the risk of safety accidents.
The cabinet is suitable for various C&I PV&ESS scenarios, including peak shaving, demand response, backup mode, photovoltaic and energy storage integration, and stable load consumption curves. It also supports applications such as virtual power plants(VPP) and frequency regulation.
Key features
- Support both on-grid and off-grid operation
- Robust back-up ability, switch over time ＜10ms, up to 150% EPS output for 10s
- Support unbalanced loads on three phases
- Four-level fire safety protection
- IP66 protection for Inverter and IP54 for cabinet AFCI optional
- AC&DC SPD type II, always guarding the inverter
- Smart IV Curve scan for early panel diagnosis
- AI ready, forecasting solar generation and load consumption, smart energy management strategy*
- Support smart scene function, intelligent loads management(e.g., Heat pump，EV charger)*
- VPP ready, SolaX cloud supports resource aggregator (2030.5, OpenADR )
- Support Micro-grid and a variety of scenarios
- Support 7×24h remote O&M and schedule deployment
- Support wireless meter solution
- Maximum 200% PV oversized input
- Maximum 40A input current per MPPT, support high power solar panel
- Global MPP SCAN boost solar energy harvest
- Advanced LFP battery, single cabinet with up to
- 200kWh, expandable to MWh
